Pads

Ecofill manufactures high quality felts for handling and transport solutions in the aluminium extrusion industry.  This includes flat material, e.g. 15 or 10 mm KEVLAR slats with or without self-adhesive backing for slat conveyor belts, or as a cover for walking beams. All available in different qualities, thickness and made to customer specification.

Applications

For example :

  • Felt strips for covering chain conveyors.
  • Felt rings (flanges) as side stoppers for roller covers.
  • Substitute for graphite bars on walking beam system.
csm_Band1_75170dd65d

Impregnation:

All ECOFILL/HONESTY Needle felt products are available with resin impregnation, not leaving stains on hot extruded aluminum profiles! The resin impregnation enhances the durability of the roller sleeves, belts, pads and makes it more stiff. The hardness of the roller sleeve can be adjusted by the concentration of the resin together with the amount of resin treatment cycles of the felt products. Next to a higher durability another advantage of resin impregnation is that aluminum swarf and or dirt does not stick into the felt.

Features:



  • Wide product range available.
  • Standard thicknesses on stock: 6,10 and 15 mm. Others can be made on request.
  • Option for self adhesive backing for quick and easy mounting on steel or aluminium carriers.
  • Resin hardening available, recommended for high loads or shifting on surfaces.
csm_maxitop_0d2b6455b5

Pads range

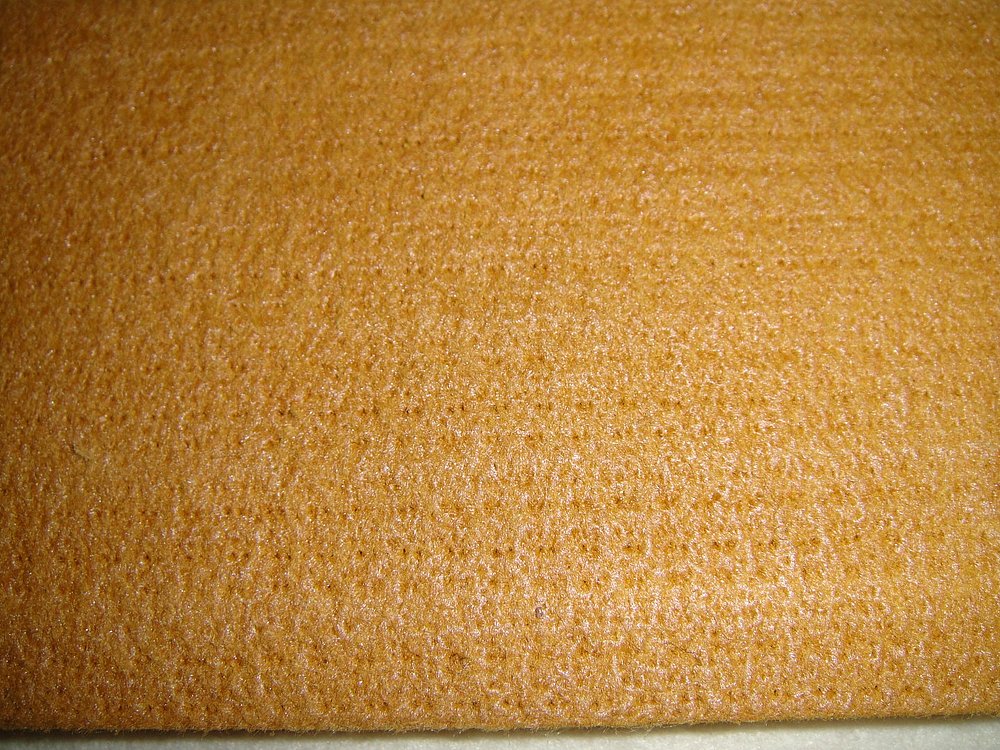

Full PBO Pads.

Honesty Maxi Brown

Pads made from 100% PBO.



  • Temperature resistance: 650 °C / 1200 °F



High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance

Standard thicknesses : 6,8,10,12mm, others on request

Maxi Top PBO Pads.



Honesty Maxi Top

Pads made from  hybrid PBO / Zylon.



  • Temperature resistance: 650 °C / 1200 °F

High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance



Standard thicknesses : 6,8,10,12mm, others on request

Maxi Yellow Pads



Honesty Maxi Yellow

Pads made from 100% Para Aramid



  • Temperature resistance: 550 °C / 1022 °F



High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance



Standard thicknesses : 6,8,10,12mm, others on request

Nomex



Honesty Nomex

Pads made from 100% Nomex.



  • Temperature resistance: 270 °C / 518 °F



High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance



Standard thicknesses : 6,8,10,12mm, others on request

Maxi White Pads

Honesty Maxi White

Pads made from 100% Polyester.



  • Temperature resistance:  518 °F / 270 °C



High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance



Standard thicknesses : 6,8,10,12mm, others on request
