LOOK BEYOND Superior Performance!

Exceeding international standards rather than just simply complying with them is a long-established part of the ECOFILL quality strategy. This can only be achieved by having the most highly skilled, dedicated technicians using the most sophisticated equipment available.

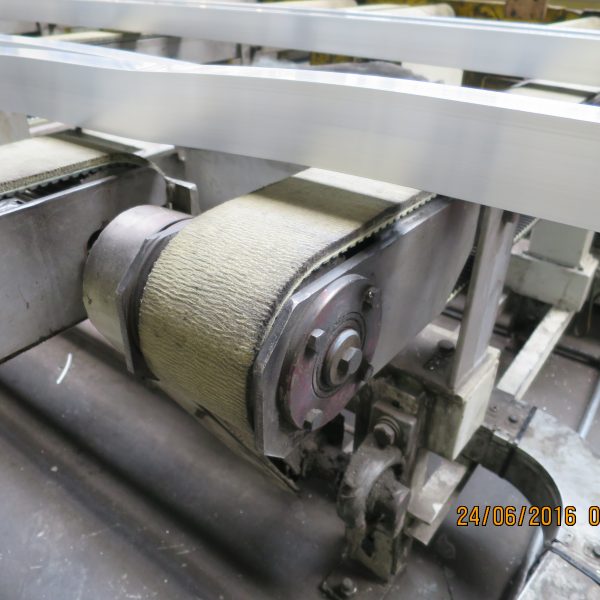

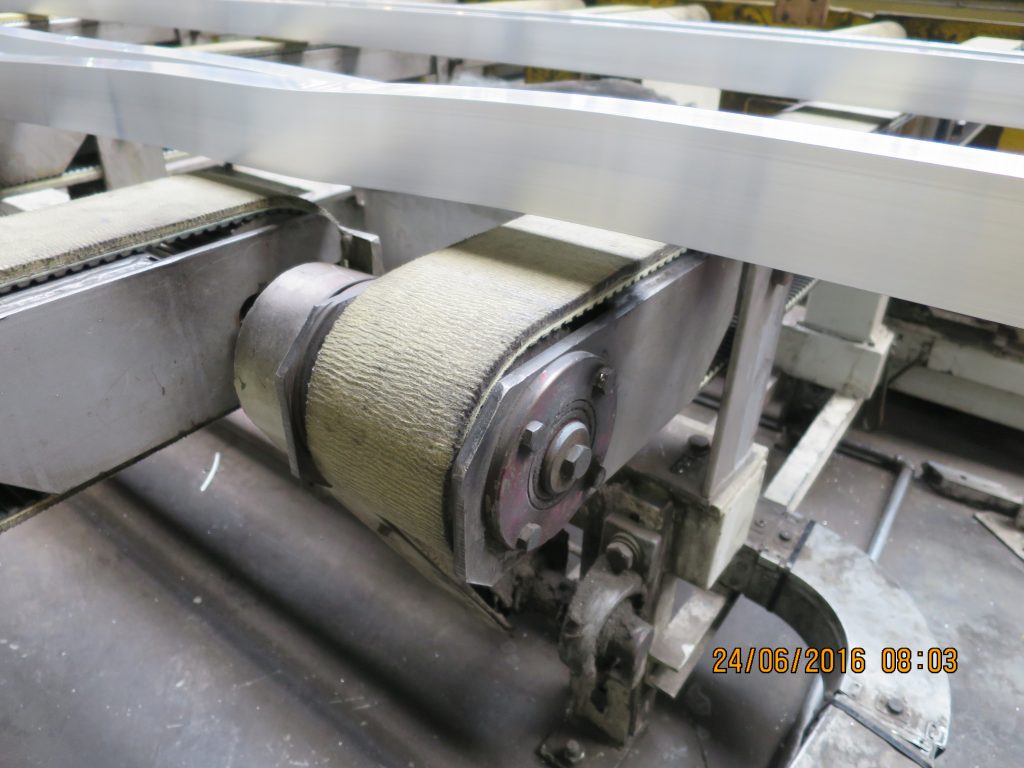

Ecofill has developed, together with various leading extrusion companies, unique endless nonwoven conveyor belts in different styles which can easily be recognized by the color of the driving side. These endless belts, designed with our new bi-directional way of needle punching boast the following features:

  • Completely endless. No Joints
  • Does not contain any POLYESTER that could cause shrinking as a result of high temperatures.
  • Stretches less than 1% for the standard black driving side (Classic) and less than 0.1% for the red driving side (Superior).

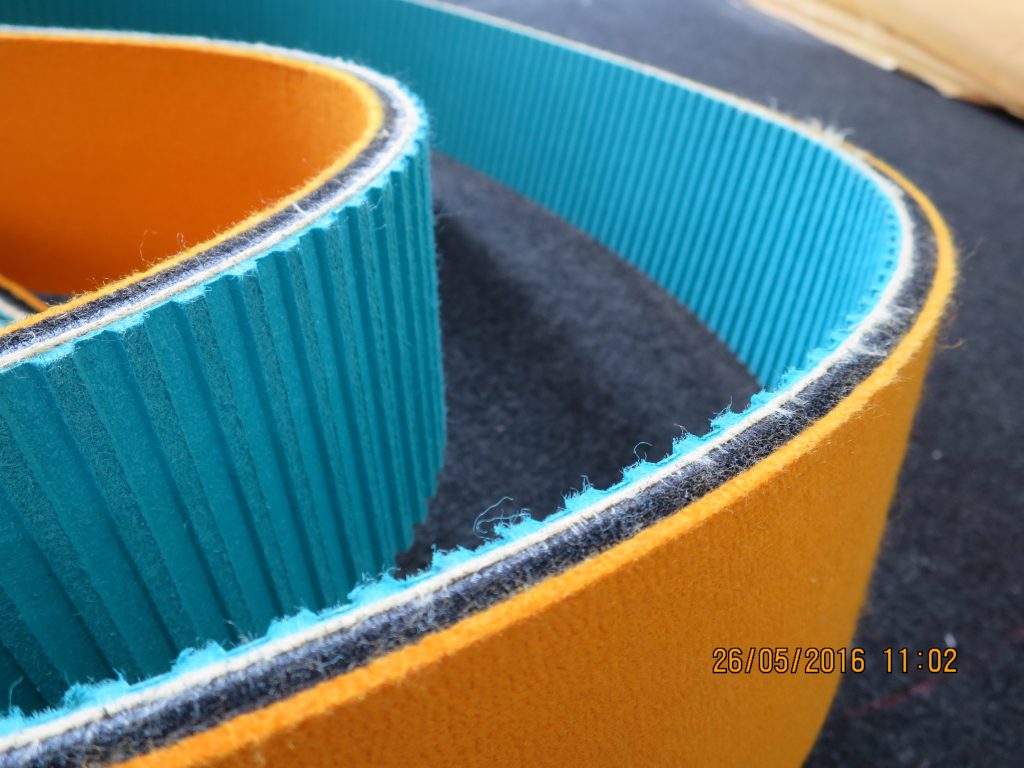

  • Timing belts, completely endless, are marked with a blue driving side.
  • Without glue or other products, needlefelt only so your belt cannot come apart.

Ecofill_Conveyor_Belts_temp.0e001d79a4d2007895d8

Consistent quality



All ECOFILL needle looms are furbished with online PLC/PC data logging; monitoring the complete needle punch production process from start to the finished end product. Reliable, highly productive and extremely cost effective belts / Needle felts, with long service life are the result.

ECOFILL manufactures real endless/seamless belts that feature the following crucial performance characteristics:

  • Completely endless, no joints or seams, no glue
  • Extremely high strength at low elongation
  • Colored base layer / driving side providing 30% less friction on the belt-arm system together with 40% more grip on the driving pulley preventing the (flat) belts to slip even under high loads.
  • Straight running; back and forward during operation
  • Manufactured to customers specs; style, tracking guides, fibers and surface finish.

Regardless of your extrusion requirements, Ecofill can offer you the perfect solution. Our endless belts come in three variants:



Budget

Without impregnated driving side



Classic

Impregnated driving side. Color: Black

Due to the impregnated driving side the endless belt will have:



  • 30% less friction on the arms
  • 40% more grip on the driving pulley
  • No loose fibers on the bottom side.
Superior

Impregnated driving side. Color: Red

Due to the impregnated driving side the endless belt will have:



  • 30% less friction on the arms
  • 40% more grip on the driving pulley
  • No loose fibers on the bottom side.

HONESTY Needle felt based Cosmetics for Aluminum Extrusions

All ECOFILL / HONESTY Needle felt Roller sleeves or Roller covers are completely seamless, round needled with or without resin impregnation, comprising an inside diameter tolerance of -0+0.15 mm for a perfect, easy to install fit.

Conveyor Belts range

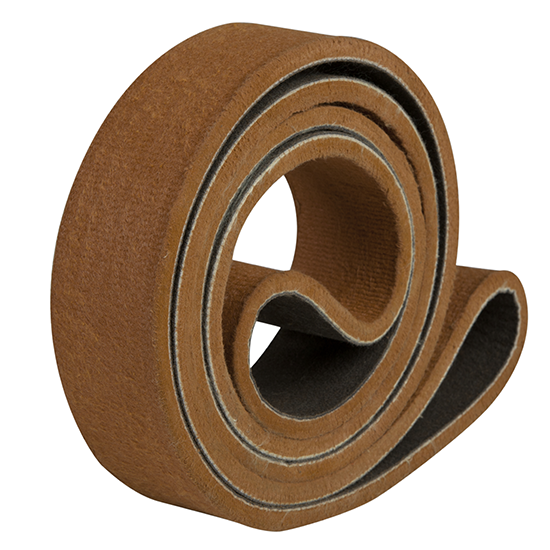

Honesty Maxi Brown

Endless conveyor belt made from 100% PBO.



  • Temperature resistance: 650 °C / 1200 °F
  • Needlefelt with high strength scrim.
  • Endless round needled.
  • Seamless without joint or junction.



High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance

Standard thicknesses : 6,8,10,12mm, others on request

Min. Pulley diameters: 80-110 mms, depending on thickness

Tracking guides available on request.

Honesty Maxi Top

Endless conveyor belt made from  hybrid PBO / Zylon.



  • Temperature resistance: 650 °C / 1200 °F
  • Needlefelt with high strength scrim.
  • Endless round needled.
  • Seamless without joint or junction.



High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance



Standard thicknesses : 6,8,10,12mm, others on request

Min. Pulley diameters: 80-110 mms, depending on thickness

Tracking guides available on request.

Honesty Golden Brown

Endless conveyor belt made from our new Golden Brown fibre.



  • Temperature resistance: 1020 °F / 550 °C
  • Needlefelt with high strength scrim.
  • Endless round needled.
  • Seamless without joint or junction.



High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance



Standard thicknesses : 6,8,10,12mm, others on request

Min. Pulley diameters: 80-110 mms, depending on thickness

Tracking guides available on request.

Honesty Maxi Yellow

Endless conveyor belts made from 100% Para Aramid



  • Temperature resistance: 550 °C / 1022 °F
  • Needlefelt with high strength scrim.
  • Endless round needled.
  • Seamless without joint or junction.

High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance



Standard thicknesses : 6,8,10,12mm, others on request

Min. Pulley diameters: 80-110 mms, depending on thickness

Tracking guides available on request.

Honesty Maxi White

Endless conveyor belts made from 100% Polyester.



  • Temperature resistance:  518 °F / 270 °C
  • Needlefelt with high strength scrim.
  • Endless round needled.
  • Seamless without joint or junction.



High Performance:

  • High wear resistance: fully made out of heat resistant fibres
  • High felt density
  • Compact structure.
  • High strength
  • Smooth felt surface (no woven pattern) with high impact absorbance



Standard thicknesses : 6,8,10,12mm, others on request

Min. Pulley diameters: 80-110 mms, depending on thickness

Tracking guides available on request.

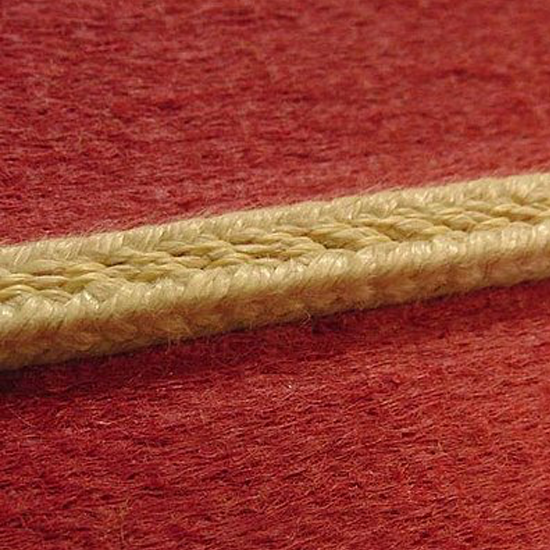

Kevlar Square Tracking Guides

Our endless belt can be equipped with various tracking guides.



  • Hot vulcanized Poly Urethane
  • Novo material
  • Rope tracking guides
  • Leather tracking guides
  • Full Kevlar square rope
Tracking Guides

Our endless belt can be equipped with various tracking guides.



  • Hot vulcanized Poly Urethane
  • Novo material
  • Rope tracking guides
  • Leather tracking guides
  • Full Kevlar square rope
Tracking Guides

Our endless belt can be equipped with various tracking guides.



  • Hot vulcanized Poly Urethane
  • Novo material
  • Rope tracking guides
  • Leather tracking guides
  • Full Kevlar square rope

Features:

  • Roller covers manufactured in Zoeterwoude / The Netherlands for high temperature (T650) application down to rubber / Synthetic or plastics Rollers for low temperature ranges from 240C down to -10C.
  • Extremely smooth & homogenious felt surface
  • Optimal thermal insulation properties

  • Antistatic optional
  • Wide product range for individual systems
  • Different wall thicknesses (3.5 up to 13 mm) for most any common ID’s
  • Special resin treatment for heavy presses
  • Round needled, seamless
